Spectra Controller (2019 Release) - Firmware Update v1.18 for Windows 10

** THIS UPDATE IS FOR SPECTRA CONTROLLERS ONLY! **

Please follow the below steps to update the firmware on your Spectra Controller

Step One. Firmware Download & Installation for Windows PC

1. Download the firmware updater for Windows 10
2. Run the Spectra_Update_v1.18_PC.exe application and follow the directions below
3. Connect the Fusion controller to any open USB port on your PC
   1. If this is your first time connecting your controller to your PC, you may get a Windows device set-up notification - this is normal. Let the device finish the automatic set-up process before proceeding to the next step.

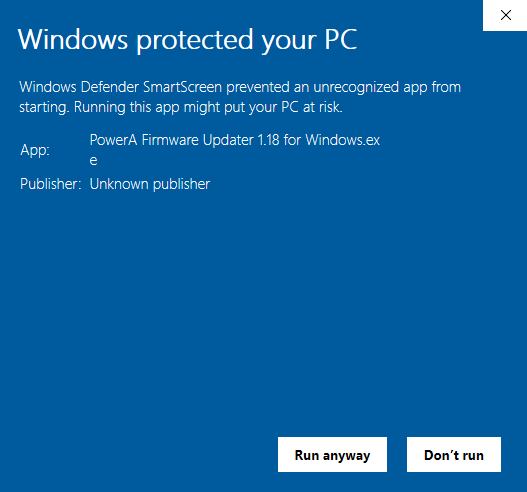

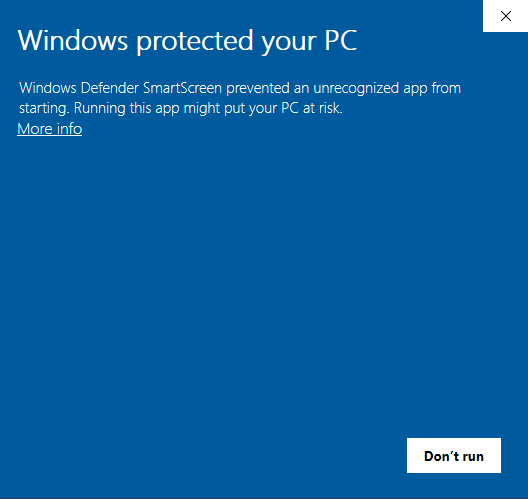

   2. If you receive the below notification, click on “More info”, then click on “Run Anyway”

4. The below updater window will appear. Click on “Update” to begin the update process

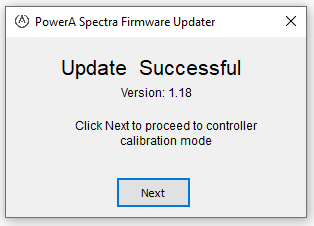

5. Once complete, you will see an ‘Update Successful’ notification to alert you that the firmware upgrade was successful

6. You may now proceed to step 2 to perform required calibration sequence

1. If the update was unsuccessful, please disconnect the controller and repeat steps 3 – 5 above

Step 2. Controller Calibration

After successfully updating the controller firmware, calibration is required to ensure optimal accuracy and responsiveness. Please CAREFULLY follow the below sequence:

1) Unplug the USB cable from the Windows PC (leave the cable plugged into the Spectra controller)

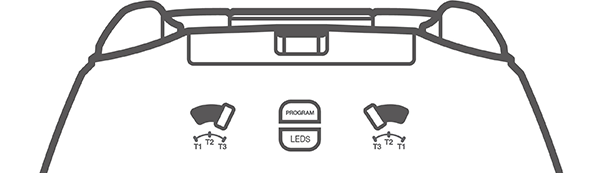

2) Ensure both trigger locks are set to the T3 position

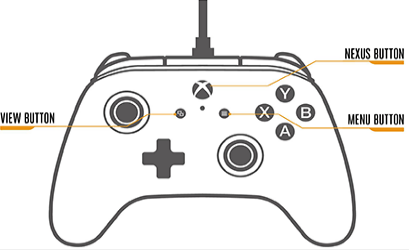

3) Press and hold the Nexus, Menu, and View buttons simultaneously. While holding the three buttons down, connect the USB cable back into the USB port of the Windows PC

4) Once plugged in, the LED under the Nexus button will flash rapidly indicating the controller has successfully entered calibration mode. You may now release the three buttons

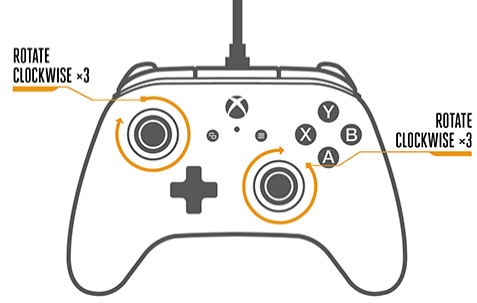

5) Rotate both analog sticks clockwise for three (3) complete rotations

6) Press both triggers simultaneously to the max distance and release three (3) times
